Explore our custom-engineered entry door solutions combining tempered impact-resistant glass, precision metal profiles, and heavy-duty structural hardware.
In contemporary residential estates and high-visibility commercial architectures, the front entry door serves as the defining structural nexus between exterior site physics and interior environmental comfort. Modern glass entry doors are no longer simple decorative timber frames holding single-pane clear glass; they have evolved into highly complex structural assemblies capable of managing extreme wind loads, severe thermal flux, acoustic infiltration, and forced-entry deterrence.
Unlike standard butt-hinged swing doors that transfer all gravity loads to vertical jambs, oversized glass pivot doors rely on heavy-duty top and bottom floor pivot pins. DERCHI engineers floor pivot hardware rated up to 800 kg (1,760 lbs), permitting glass leaves spanning up to 2,000 mm in width and 4,000 mm in height while maintaining fingertip operating forces under 15 Newtons.
By employing 6063-T5 high-tensile aluminum alloy profiles separated by Technoform® PA66-GF25 (25% glass fiber reinforced polyamide) thermal break strips, our glass entrance doors achieve U-values as low as 1.4 W/(m²·K). This thermal barrier eliminates condensation, minimizes thermal bridging, and preserves interior climate control across extreme microclimates.
Utilizing multi-cavity triple-sealed EPDM gasket loops combined with argon gas-filled double or triple Insulated Glass Units (IGUs), our exterior glass assemblies provide Sound Transmission Class (STC) ratings up to STC 42 and pressure resistance certified beyond 3,000 Pascals (Pa).
Detailed engineering matrix comparing structural profile specs, glazing configurations, hardware options, and thermal metrics across DERCHI glass entry door platforms.
| Door System Platform | Profile Build-Up & Material | Glazing Assembly Specs | Thermal Metric (U-Value) | Acoustic Rating (STC) | Target Architectural Intent |
|---|---|---|---|---|---|

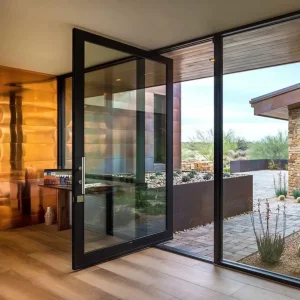

| Thermal Break Aluminum Glass Pivot Door | 100–120mm 6063-T5 Profile, 25mm PA66 Polyamide Break | 8mm Low-E + 12A Argon + 8mm Tempered Glass | 1.4 – 1.8 W/(m²·K) | 38 – 42 dB | Ultra-modern residential frontages, grand villa entrances, oversized openings |

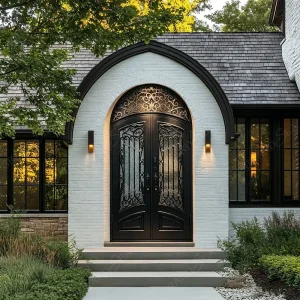

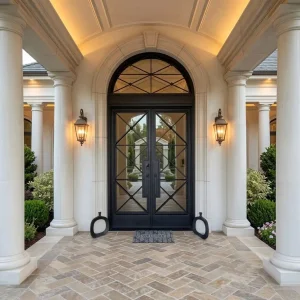

| Custom Wrought Iron Glass Double Door | Hand-Forged 12-Gauge Steel Frame with Electro-Phoretic Dip | 6mm Low-E + 9A Argon + 6mm Tempered (Operable Glass Panel) | 2.0 – 2.4 W/(m²·K) | 34 – 37 dB | Luxury Mediterranean, French Provincial, classic estate front gates |

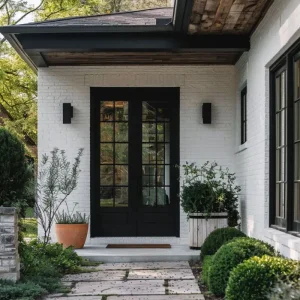

| Slim-Frame French Glass Entry Door | 80mm Ultra-Slim Thermal Aluminum with Security Grid Infills | 6mm Clear Tempered + 12A + 6mm Low-E Double Insulated | 1.6 – 1.9 W/(m²·K) | 36 – 40 dB | Modern Farmhouse, urban commercial store frontages, residential patios |
| Hurricane Impact Glass Entry Door | Heavy-Wall 3.0mm Extruded Aluminum with Internal Steel Pins | 6mm Tempered + 1.52 PVB/SentryGlas® + 6mm Tempered Impact Glass | 1.8 – 2.2 W/(m²·K) | 40 – 44 dB | Coastal cyclone zones, Florida HVHZ, Caribbean oceanfront developments |
| Smart Privacy PDLC Glass Entrance Door | 110mm Thermally Broken System with Integrated Wiring Channels | 6mm Clear + Smart Electrochromic PDLC Film + 6mm Tempered | 1.5 – 1.8 W/(m²·K) | 37 – 41 dB | Executive corporate offices, luxury penthouse suites, high-privacy residences |
Navigating regional building codes is the most critical hurdle for international real estate developers and general contractors. DERCHI manufactures custom glass entrance systems pre-engineered to comply with major global standard frameworks.
Doors destined for the US and Canada are engineered to meet NFRC 100/200 thermal requirements (U-factor and SHGC), NAMI certifications, and ASTM E330 structural air/water/wind pressure testing protocols.
For high-velocity hurricane zones (Florida Coastal & Caribbean), DERCHI supplies laminated impact glass utilizing DuPont SGP (SentryGlas®) interlayers rated for TAS 201, 202, and 203 missile impact tests.
Fully compliant with Australian Building Code standards AS2047 for window and door performance (N6 rating up to 4,500 Pa strength) and AS1288 human impact safety glass regulations.
CE marked factory output meeting EN 14351-1 standards for external pedestrian doorsets, guaranteeing airtightness Class 4, water tightness Class 9A, and resistance to wind load Class C5.
Situated in Foshan, Guangdong—the world’s premiere manufacturing capital for architectural aluminum and hardware—DERCHI delivers unparalleled cost-to-performance efficiency through total vertical supply chain integration.
DERCHI controls every step: raw 6063 aluminum billet extrusion, automated vertical powder coating lines (AkzoNobel® certified), fluorocarbon (PVDF) spraying, and anodizing lines. This eliminates sub-supplier markups and guarantees batch-to-batch color consistency.
Our 180,000 m² factory operates 5-axis CNC machining centers capable of milling hardware locks, hidden floor pivot pockets, and concealed door closer tracks with a tight machining tolerance of ±0.1 mm across profiles up to 6 meters in length.
Every glass leaf undergoes strict automated inspection: 1) Profile alloy hardness check, 2) Powder coating film thickness testing (≥60µm), 3) Glass double-seal dew-point verification, 4) Pre-assembly air/water chamber test, and 5) Fumigation-free plywood crate packaging.
From initial concept and architectural CAD shop drawings to containerized ocean shipment and on-site technical installation support.
Submit window/door schedules, opening dimensions, wind load ratings, and design intent. Initial technical feedback returned within 24 hours.
Our engineering department generates detailed 2D CAD cross-sections and 3D Revit BIM models for architectural approval and consultant sign-off.
Custom die extrusion, surface coating, glass toughening/laminating, and hardware integration carried out inside DERCHI’s certified facilities.
Visual and mechanical factory mock-ups assembled prior to bulk shipping. HD photo and video inspection reports issued to the project manager.
Individual openings wrapped in protective EPE foam, packed into reinforced plywood crates with custom loading maps for rapid site sorting.
Architectural demand is rapidly shifting away from bulky, traditional door stiles toward ultra-slim profile profiles (vertical stiles as narrow as 20–30 mm). By embedding the aluminum structural sub-frame directly into surrounding masonry or curtain wall channels, DERCHI glass entry doors maximize daylight opening percentages while achieving a continuous glass-to-edge aesthetic.
Modern luxury doors are converting to concealed electromechanical multi-point locking systems. DERCHI integrates German-engineered dormakaba® and GU® motorized locks compatible with facial recognition, fingerprint readers, keypad access, and smart home automation systems (Control4, Crestron, KNX) for seamless hands-free entry.
Switchable privacy glass allows clear glass entry doors to instantly transform into opaque barriers at the touch of a button or mobile app command. By laminating Polymer Dispersed Liquid Crystal (PDLC) films inside tempered double-glazed units, DERCHI delivers dynamic privacy control without needing window blinds or drapes.
Emerging Next-Gen VIG technology replaces gas-filled insulating cavities with a high-vacuum chamber. This achieves center-of-glass U-values as low as 0.6 W/(m²·K) in a glass unit only 10 mm thick, drastically reducing leaf weight while exceeding triple-glazing thermal insulation standards.
Exposed to severe salt-spray environments and hurricane wind pressures, coastal luxury villas require marine-grade anodized or 30-micron PVDF-coated aluminum frames combined with SentryGlas® hurricane impact-resistant laminated glass to preserve ocean views safely.
High-traffic commercial entrances demand heavy-duty hydraulic floor pivots rated for over 1,000,000 operational cycles, integrated panic exit push bars, ADA-compliant low-profile thresholds, and auto-closing hydraulic controls.
Combining dark charcoal or matte black powder-coated aluminum French grid frames with energy-efficient Low-E tempered glass gives residential estates an industrial chic statement with modern thermal insulation performance.
Discover additional entry door options engineered for high-security residential villas, apartment developments, and modern architectural frontages.
In-depth answers to critical technical, structural, and logistical questions frequently asked by overseas architects, engineers, and project developers.
Standard DERCHI glass pivot systems accommodate leaf heights up to 4,000 mm (13.1 ft) and leaf widths up to 2,000 mm (6.5 ft). Utilizing heavy-duty hydraulic floor pivots engineered with internal thrust bearings, our systems comfortably support continuous leaf weights up to 800 kg (1,760 lbs). For extra-large openings exceeding these dimensions, our engineering department designs custom steel-core reinforced sub-frames with twin top-stay stabilizers.
Pivot doors naturally present sealing challenges at the top and bottom pivot axes. DERCHI solves this using drop-down automatic acoustic bottom seals (concealed mechanism that drops an EPDM gasket when the door shuts), dual continuous perimeter EPDM weatherstripping gaskets, and magnetic interlock sealing fins along vertical stiles. In lab testing under ASTM E331, our systems prevent water penetration at test pressures up to 450 Pa.
We supply a complete engineering compliance packet with every export shipment. This includes ISO 9001 quality system credentials, CE mark declaration of performance certificates (EN 14351-1), Australian AS2047 and AS1288 test reports issued by NATA-accredited laboratories, NFRC thermal performance calculation reports, and hurricane impact test summaries (TAS 201/202/203) for coastal U.S. projects.
Engineering CAD drafting and approval takes 3 to 7 working days. Once shop drawings are signed off and deposit confirmed, sample door orders ship in 15 to 20 days. Full container load bulk production (FCL) requires 25 to 35 calendar days depending on surface finish (PVDF coating or custom anodizing requires an extra 5 days). Ocean transit time varies from 14 days (US West Coast / Southeast Asia) to 30 days (Europe / US East Coast).
Yes. Our in-house tooling center develops custom extrusion dies within 12 to 15 days. If your project schedule mandates matching an existing architectural profile system (e.g., Reynaers, Schüco, or Cortizo), our technical team produces an equivalent shop drawing comparison matrix showing profile thickness, thermal break width, hardware compatibility, and cost savings achievable by sourcing direct from our Foshan factory.
Every glass door leaf is clad in PE protective film, fitted with heavy EPE foam corner shields, sealed inside moisture-proof poly-wrapping, and bolted vertically inside fumigation-free ISPM-15 compliant plywood crates. Crates feature integrated steel lifting lugs and base runners for forklift loading, ensuring zero glass breakage across thousands of sea freight shipments.
