Modern luxury architecture and high-threat commercial facilities have triggered a fundamental evolution in entry system design. The global demand has pivoted away from traditional surface-mounted, bulky security doors toward flush concealed security doors—systems where the frame, heavy-duty structural hinges, locking channels, and perimeter weather barriers are entirely hidden within wall assemblies or structural masonry.
Achieving absolute visual minimalism without compromising structural resistance requires exceptional engineering precision. When hinges and frames are concealed, physics dictates concentrated rotational moments, high shear forces on mounting anchors, and complex seal compression mechanics. As leading China Concealed Security Door Suppliers & Factory, Chinese manufacturers like DERCHI (operating out of Foshan’s 180,000 m² industrial cluster) have transformed physical security through specialized metallurgical formulations, 3D adjustable continuous pivot systems, and automated robotic assembly lines.
Concealed security doors align perfectly flush with drywall, marble cladding, or architectural fair-faced concrete. Eliminating exposed architraves and frame margins produces uninterrupted wall planes prized by contemporary architects.
Exposed hinges and jamb lips are the most vulnerable leverage points for mechanical crowbar attacks or hydraulic spreading tools. Concealing hinges within sub-frame pockets eliminates external leverage points entirely, elevating structural rating to EN 1627 RC3/RC4 levels.
Integrating heavy multi-chamber aluminum or armored stainless steel skins with polyamide thermal breaks and acoustic core insulation (rock wool/polyurethane foam) achieves U-values under 1.4 W/(m²·K) and sound reduction up to 45 dB STC.
The global luxury real estate, commercial banking, and high-net-worth residential sectors are undergoing massive physical security retrofits. Demand drivers vary drastically across regional key markets, requiring specialized manufacturing configurations from Chinese OEM/ODM export hubs.
In coastal US states (Florida, California) and the Caribbean, specifications mandate combined NFRC energy certification, Miami-Dade hurricane impact rating (TAS 201/202/203), and concealed anti-prying hardware. Systems require 8mm+ laminated glass panels integrated into hidden aluminum pivot structures.
European developers focus on high acoustic dampening (Rw > 42dB) and thermal insulation compliance with Passive House criteria (U-value ≤ 0.8 W/m²K), alongside strict EN 1627 Burglar Resistance Classes (RC2 to RC4). Clean flush doors with invisible drop-down acoustic thresholds lead procurement requests.
Over-sized villa gates and hotel lobby entrances (heights up to 4000mm, widths up to 2000mm) dominate Gulf region inquiries. Priority is placed on heavy-duty motorized pivot hardware, motorized multi-point biometric locking systems (fingerprint, facial recognition, smart home integration), and cast aluminum corrosion-resistant finishes capable of resisting desert heat cycling and salt fog.
Sourcing concealed security doors from top-tier Chinese manufacturers provides global procurement directors with an unmatched combination of extreme structural customizability, shortened production cycles, and aggressive cost efficiencies. China’s advanced aluminum extrusion and metal fabrication clusters, particularly in Guangdong (Foshan), have evolved into automated Industry 4.0 powerhouses.
Concealed hinges demand micro-level pocket tolerances. 5-axis German CNC milling centers carve precise hinge cavities out of solid T6 aviation-grade aluminum profiles to prevent sag over decades of heavy leaf rotation.
Fluorocarbon PVDF liquid spraying and electrostatic powder lines apply 60–80 µm dry film thickness coatings. Resistant to salt spray corrosion for over 3,000 hours (ASTM B117 compliant).
Factory integration of high-density honeycomb structural reinforcement, bulletproof aramid fiber plates, and rock wool insulation sandwiched between dual 2.0mm SUS304 or 6063-T5 aluminum skins.
Vertically integrated raw extrusion, hardware machining, glazing, and pre-assembly testing under one roof reduces sample production to 12-15 days and mass production to 25-30 days.
Compare the mechanical performance, aesthetic integration, and operational parameters of engineered concealed security systems against conventional surface-mounted exterior doors.
| Performance Parameter | Concealed Security Pivot Door | Concealed Flush Hinged Door | Traditional Exposed Security Door |
|---|---|---|---|
| Hinge Architecture | Heavy-Duty Heavy Floor/Head Pivot (3D Adj.) | Concealed Multi-Axis Interlocking Hinges | Surface-Mounted Flag / Butt Hinges |
| Max Leaf Weight Capacity | Up to 600 kg (1,320 lbs) | Up to 250 kg (550 lbs) | Up to 120 kg (264 lbs) |
| Max Opening Dimension | 2000 mm (W) × 4000 mm (H) | 1400 mm (W) × 3000 mm (H) | 1100 mm (W) × 2400 mm (H) |
| Burglary Rating (EN 1627) | Class RC3 / RC4 / WK4 | Class RC3 / RC4 | Class RC1 / RC2 |
| Thermal Insulation (U-Value) | 1.2 – 1.6 W/(m²·K) (Thermal Break) | 1.4 – 1.8 W/(m²·K) | 2.2 – 3.0 W/(m²·K) (Non-Thermal) |
| Acoustic Insulation (STC) | 40 dB – 48 dB | 38 dB – 44 dB | 28 dB – 35 dB |
| Perimeter Seal Mechanics | Automatic Drop Down Seal + Quad EPDM | Triple Perimeter EPDM Gaskets | Single/Double Compression Strip |
Concealed security doors adapt to diverse architectural styles and structural environments. Custom engineering guarantees perfect integration without sacrificing perimeter defense.

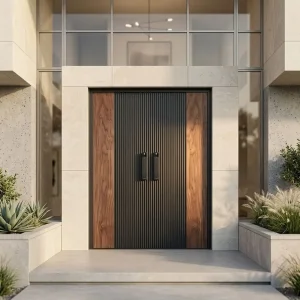

Large format pivot doors featuring natural wood veneer skin over structural alloy cores, fitted with hidden top/bottom hydraulic pivots. Creates a monumental entrance flush with stone wall facades.
Wall-camouflaged concealed doors integrated into interior wood paneling. Equipped with electromagnetic multi-bolt locking systems, bulletproof cores (NIJ Level III), and biometric reader access.
Fire-rated steel flush doors with concealed heavy floor springs, integrated glass sidelights, and automated access control loops compliant with UL 10C and EN 1634 fire standards.
Browse our additional line of modern steel entry systems, minimalist wood-grain aluminum pivot doors, hurricane impact bifold systems, and custom armored villa entrances.
Comprehensive technical guidance curated by DERCHI's senior structural door engineers for architects, main contractors, and global procurement buyers.
